High-Speed Production Wood Door Processing Center with Exceptional Precision and Aesthetic Finish

High-Speed Production Wood Door Processing Center with Exceptional Precision and Aesthetic Finish

Nama merek:	SHUPING
Nomor Model:	Dza
Moq:	1
Ketentuan Pembayaran:	T/T
Kemampuan Penyediaan:	10 pcs/40 hari kerja

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Tiongkok

Sertifikasi:

Kemasan rincian:

Kemasan bungkus gelembung

Menyediakan kemampuan:

10 pcs/40 hari kerja

Menyoroti:

High-Speed Production Wood Door Processing Center

Exceptional Precision Wood Door Processing Center

Aesthetic Finish Wood Door Processing Center

Deskripsi Produk

Multi-Functional Wood Door Processing Center

The DZA Multi-Functional Wood Door Processing Center is an advanced, all-in-one CNC machining solution designed specifically for door manufacturers. It streamlines the entire process of door customization and hardware fitting, transforming raw panels into finished, ready-to-install doors with exceptional speed, precision, and simplicity. This machine is the cornerstone of a modern, efficient door production line, enabling businesses to enhance productivity and output quality while reducing labor costs and errors.

Product Overview

The DZA machine is an integrated system that consolidates multiple woodworking operations into a single, robust unit. It is engineered to perform a comprehensive range of tasks, including door squaring, profile milling, hollowing/carving, and the precise machining of all essential hardware recesses. By replacing several standalone machines, it saves significant factory floor space and simplifies the workflow, making it an ideal choice for manufacturers of interior and exterior wood doors.

Key Features & Characteristics

Simplified Operation: Built-in processing modules allow operators to simply input required dimensions, minimizing technical expertise requirements and reducing setup time.
High-Speed Production: Completes a set of lock holes in just 60 seconds, dramatically increasing workshop throughput.
Exceptional Precision: High-performance Mitsubishi servo control system and THK ball screws ensure perfect positioning and dimensioning of all cuts, grooves, and holes.
Aesthetic Finish: Industry-standard anti-tear design prevents chipping and splintering for clean, professional results.

Technical Advantages & Benefits

Increased Productivity: Consolidates multiple processes, reducing handling and machining time.
Reduced Labor Costs: Easy operation allows less experienced workers to produce high-quality results.
Enhanced Consistency & Quality: CNC precision eliminates human error for identical, high-standard doors.
Versatility: Handles doors up to 2500mm length, 300-1000mm width, and 18-55mm thickness.
Space Optimization: Replaces multiple machines, freeing valuable factory space.

Technical Parameters

Parameter	Specification
Main Spindle Motor	8 KW (with oil cooling & lubrication)
Working Length	2500 mm
Working Width	300 - 1000 mm
Working Thickness	18 - 55 mm
Lock Position Milling Motor	5.6 KW
Horizontal Reverse Milling Motor	0.75 KW
Lock-Pin Milling Motor	0.75 KW
Hinge Milling Motor	0.75 KW x 2
Hanging Hole Drilling Motor	0.75 KW x 1
Overall Machine Dimensions	4700 x 2500 x 2400 mm

Frequently Asked Questions

Q: What is the primary function of this machine?

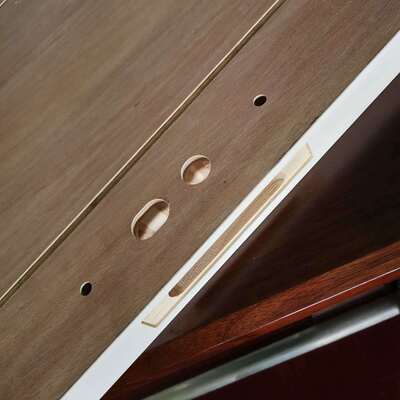

A: It is a multi-functional CNC center designed for processing wood doors, performing tasks from squaring and shaping to cutting precise recesses for locks, hinges, sliders, and other hardware.

Q: How easy is it to operate?

A: Designed for simplicity. With built-in processing modules, operators primarily only need to input specific dimensions for the door and hardware, and the machine handles the rest.

Q: What is the "anti-tear design"?

A: This feature prevents wood from splintering or "blowing out" at edges during milling and drilling, ensuring a clean, professional finish without visible damage to the door surface.

Q: Can it handle different door sizes?

A: Yes, it accommodates doors up to 2500mm in length, with widths between 300mm and 1000mm, and thicknesses from 18mm to 55mm.
